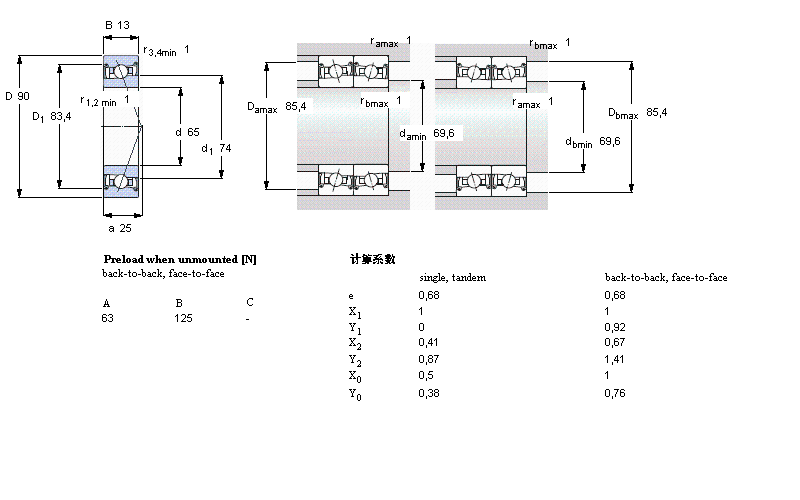

| 角接觸球軸承, 精密, SC .. DB, sealed, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 65 | 90 | 13 | 13,8 | 16 | 0,68 | 18000 | - | 0,19 | SC71913 DB/P7 | - | |
我公司特價供應以下型號產品： 6308ZE 深溝球軸承 SC71919DB/P7 角接觸球軸承 7309B 角接觸球軸承 32322A+T2GD110 圓錐滾子軸承 5213 角接觸球軸承 N12 N和AN鎖定螺母 51204V/HR22Q2 聚合物球軸承 6005-2NKE 深溝球軸承 2208TV 調心球軸承
